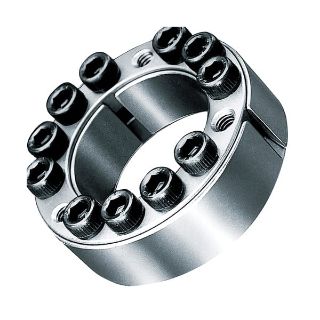

Actual Product May Vary From Image

PL045X075 UST

Name: PL045X075 UST
Brand: US Tsubaki
SKU: PL045X075 UST
Price: 102.04 USD
Availability: InStock

Tsubaki® Power-Lock® PL045X075 AS Series Multi-Purpose Keyless Locking Device, 45 mm Dia Bore, 75 mm OD, 32 mm OAL, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: PL045X075

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
27	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$102.04

Qty:

Product Details

Brand Name

Tsubaki®

Type

Multi-Purpose

Description

The Tsubaki® Power-Lock® has been highly acclaimed since its introduction into the locking device market. It carries many attractive features and comes in a wide range of models that meet the needs of customers.

Tsubaki® Power-Lock® Keyless Locking Device, Multi-Purpose, Series: AS Series, 45 mm Bore Dia, 75 mm Outside Dia, 1600 N-m Transmissible Torque, 70.6 kN Transmissible Thrust, 200 MPa Shaft Contact, 121 MPa Hub Contact, M8 x 22 Screw, 32 mm Overall Length, -30 to 200 deg C, Carbon Steel, Uncoated

Standards

RoHS Compliant

Features

Most popular series world-wide
Easy machining of shaft and hub
Can use on shafts with keyway
Low machining costs
Easy to install

Specifications

Bore Diameter:	45 mm
Country of Origin:	CN
Finish:	Uncoated
Hub Contact Pressure:	121 MPa
Material:	Carbon Steel
Outside Diameter:	75 mm
Overall Length:	32 mm
Screw Size:	M8 x 22
Series:	AS Series
Shaft Contact Pressure:	200 MPa
Temperature Rating:	-30 to 200 deg C
Transmissible Thrust:	70.6 kN
Transmissible Torque:	1600 N-m
