PLX31-EIP-ASCII PRS

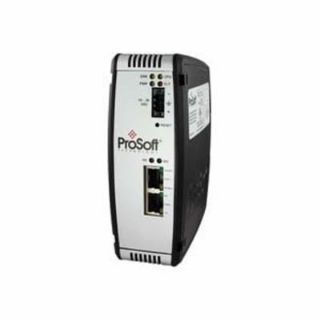

Picture of PLX31-EIP-ASCII PRS
Actual Product May Vary From Image

Product Details

Manufacturer:
Prosoft Technology
Manufacturer part number:
PLX31-EIP-ASCII
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,009.00 / EA

Description

Brand Name

ProSoft Technology

Description

ProSoft Technology's EtherNet/IP™ to ASCII communication gateway allows highspeed bi-directional data transfers between EtherNet/IP™-enabled PACs and ASCII devices such as weigh scales and barcode readers. The EtherNet/IP™ protocol driver supports the explicit messaging implementation. The gateway is user-configurable as both a client and a server. EtherNet/IP™ PACs include Rockwell Automation® ControlLogix® and CompactLogix™, as well as several Schneider Electric® controllers. Applications for this module are found in most industries, especially manufacturing, oil & gas, electrical power and food processing. The gateway has several features that allow for simplified integration, reduced commissioning time and optimized performance.
ProSoft Technology Gateway, Ethernet/IP Protocol, 50/60 Hz Frequency, 10Base-T Half Duplex RJ-45 Port, 2 Ports, 5.38 x 1.99 x 4.38 in, Environmental Conditions: -13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity

Application

Manufacturing, Oil/Gas, Electrical Power and Food Processing

Standards

UL 1577

Features

  • EtherNet/IP to ASCII
  • 4000 word database
  • Status data
  • Node health
  • 10/100 MB ethernet port with auto cable crossover detection
  • Data analyzer for ASCII network
  • 24 vdc nominal, 10 to 36 vdc allowed power supply with positive, negative, GND terminals
  • 300 mA at 24 vdc nominal and 610 mA at 10 to 36 vdc maximum current load
  • 15 G at 11 ms, 3-Axis (operational) and 30 G at 18 ms, 3-Axis (non-operational) shock rated
  • 5G at 10 to 150 Hz vibration rated
  • Configuration (CFG) and error (ERR) communication, power (PWR) and hardware fault (FLT), network status (NS) EtherNet/IP class I/Class III connection, module status (MS) nodule configuration status, ethernet communication port link/activity and 100 mbit and serial communication port receive (RX)/transmit (TX) LED indicators
  • 10/100 Base-T half-duplex RJ45 connector ethernet port
  • 1500 Vrms at 50/60 Hz for 60 sec
  • 2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF modulation signal as isolation media - serial port isolation
  • -40 to 176 deg F storage temperature

Includes

2-1/2 mm Screwdriver, PLX30 DVD, J180 Power Connector, (1 to 4) RJ45-DB9M Serial Adapter Cable (Serial Protocol), (1 to 4) DB9 to Screw Terminal Adapter (Serial Protocol) , 5 ft Gray Straight-Through Ethernet Cable

Specifications

Country of Origin:US
Dimensions:5.38 x 1.99 x 4.38 in
Environmental Conditions:-13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Frequency Rating:50/60 Hz
Number of Ports:2
Port Type:10Base-T Half Duplex RJ-45
Protocol:Ethernet/IP
