PLX31-EIP-MBS PRS

Name: PLX31-EIP-MBS PRS
Brand: Prosoft Technology
SKU: PLX31-EIP-MBS PRS
Price: 969.00 USD
Availability: OutOfStock

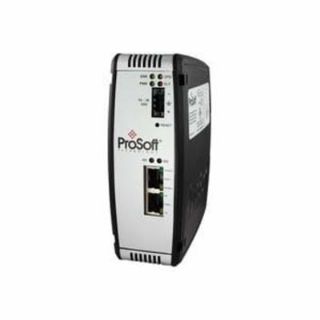

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

PLX31-EIP-MBS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$969.00 / EA

Description

Brand Name

ProSoft Technology

Description

ProSoft Technology's EtherNet/IP™ to Modbus® Serial communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™ PACs or devices and Modbus®-enabled PACs or devices. EtherNet/IP™ PACs include Rockwell Automation® ControlLogix® and CompactLogix™, as well as several Schneider Electric® controllers. Modbus® Serial devices are widely used in nearly every industry and include SCADA systems and Power Monitors. The gateway includes several features that allow for simplified integration, reduced commissioning time and optimized performance

ProSoft Technology Gateway, Ethernet/IP Protocol, 50/60 Hz Frequency, RS232/422/485 Interface, 110/115.2 kbps Data Transfer Rate, 10Base-T Half Duplex RJ-45 Port, 2 Ports, 5.38 x 1.99 x 4.38 in, Environmental Conditions: -13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity

Standards

UL 1577 | cUL Class 1 Division 2 | CE Listed | ATEX Zone 2

Features

EtherNet/IP to Modbus® serial
4000 word database
Multiple I/O connections
Status data
Node health
10/100 MB ethernet port with auto cable crossover detection
Data analyzer for Modbus® serial network
24 vdc nominal, 10 to 36 vdc allowed power supply with positive, negative, GND terminals
300mA at 24 vdc nominal and 610 mA at 10 to 36 vdc maximum current load
15 G at 11 ms, 3-Axis (operational) and 30 G at 18 ms, 3-Axis (non-operational) shock rated
5G at 10 to 150 Hz vibration rated
Configuration (CFG) and error (ERR) communication, power (PWR) and hardware fault (FLT), network status (NS) EtherNet/IP class I/Class III connection, module status (MS) nodule configuration status, ethernet communication port link/activity and 100 mbit and serial communication port receive (RX)/transmit (TX) LED indicators
10/100 Base-T half-duplex RJ45 connector ethernet port
1500 Vrms at 50/60 Hz for 60 sec
2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF modulation signal as isolation media - serial port isolation
-40 to 176 deg F storage temperature

Includes

2-1/2 mm Screwdriver, PLX30 DVD, J180 Power Connector, (1 to 4) RJ45-DB9M Serial Adapter Cable (Serial Protocol), (1 to 4) DB9 to Screw Terminal Adapter (Serial Protocol) , 5 ft Gray Straight-Through Ethernet Cable

Specifications

Country of Origin:	US
Data Transfer Rate:	110/115.2 kbps
Dimensions:	5.38 x 1.99 x 4.38 in
Environmental Conditions:	-13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Frequency Rating:	50/60 Hz
Interface:	RS232/422/485
Number of Ports:	2
Port Type:	10Base-T Half Duplex RJ-45
Protocol:	Ethernet/IP
