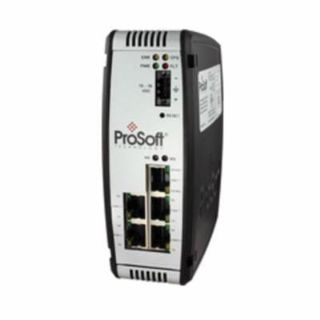

PLX31-EIP-MBS4 PRS

The EtherNet/IP® to modbus serial gateway offers bi-directional data transfers between modbus serial and the EtherNet/IP network. Our EtherNet/IP driver uses class 1 I/O connections and/or class 3 message instructions. Protocol conversion gateways are the ideal solution for distributed networks when adding a remote rack becomes too costly. The PLX31-EIP-MBS4 gateways are stand-alone DIN rail mounted gateways that provide one EtherNet port for communication, allowing for remote configuration and diagnostics and up to four (4) serial communication ports. The PLX30 gateways also come with an SD card slot (SD card optional) for storing configuration files. In the event of a failure the SD card can be transferred to another gateway reducing downtime. These gateways also come with a wide input power range (10 VDC - 36 VDC)and an extended temperature range (-25deg C to 70deg C ). The PLX30 gateways include all the necessary cables required for communication.

ProSoft Technology EtherNet/IP to Modbus Serial Gateway, Modbus Slave Protocol, 50/60 Hz, Serial Port, 4 Ports, 5.38 in H x 1.99 in W x 4.38 in D, Environmental Conditions: 5 to 95% Humidity
