PLX31-EIP-MBTCP PRS

Name: PLX31-EIP-MBTCP PRS
Brand: Prosoft Technology
SKU: PLX31-EIP-MBTCP PRS
Price: 969.00 USD
Availability: OutOfStock

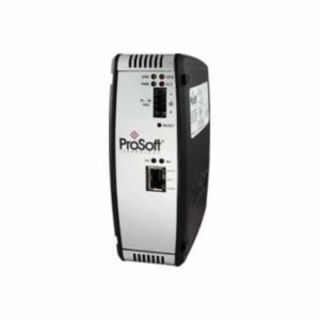

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

PLX31-EIP-MBTCP

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$969.00 / EA

Description

Brand Name

ProSoft Technology

Description

ProSoft Technology's EtherNet/IP™ to Modbus® TCP/IP communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™ enabled controllers or devices and Modbus® TCP/IP controllers or devices. Our Modbus® TCP/IP driver features multiple client and server functionality, for faster data transmission. In addition, the gateway includes several features, including data prioritization, that allow for simplified integration, reduced commissioning time and optimized performance.

ProSoft Technology Gateway, Ethernet/IP Protocol, 50/60 Hz Frequency, RS232/422/485 Interface, 10Base-T Half Duplex RJ-45 Port, 5.38 x 1.99 x 4.38 in, Environmental Conditions: -13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity

Standards

UL 1577 | cUL Class 1 Division 2 | CE Listed | ATEX Zone 2

Features

EtherNet/IP to Modbus® TCP/IP
4000 word database
Multiple I/O connections
Status data
Node health
10/100 MB ethernet port with auto cable crossover detection
24 vdc nominal, 10 to 36 vdc allowed power supply with positive, negative, GND terminals
300 mA at 24 vdc nominal and 610 mA at 10 to 36 vdc maximum current load
15 G at 11 ms, 3-Axis (operational) and 30 G at 18 ms, 3-Axis (non-operational) shock rated
5G at 10 to 150 Hz vibration rated
Configuration (CFG) and error (ERR) communication, power (PWR) and hardware fault (FLT), network status (NS) EtherNet/IP class I/Class III connection, module status (MS) nodule configuration status, ethernet communication port link/activity and 100 mbit and serial communication port receive (RX)/transmit (TX) LED indicators
10/100 Base-T half-duplex RJ45 connector ethernet port
1500 Vrms at 50/60 Hz for 60 sec
2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF modulation signal as isolation media - serial port isolation
-40 to 176 deg F storage temperature

Includes

2-1/2 mm Screwdriver, PLX30 DVD, J180 Power Connector, (1 to 4) RJ45-DB9M Serial Adapter Cable (Serial Protocol), (1 to 4) DB9 to Screw Terminal Adapter (Serial Protocol) , 5 ft Gray Straight-Through Ethernet Cable

Specifications

Country of Origin:	US
Dimensions:	5.38 x 1.99 x 4.38 in
Environmental Conditions:	-13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Frequency Rating:	50/60 Hz
Interface:	RS232/422/485
Port Type:	10Base-T Half Duplex RJ-45
Protocol:	Ethernet/IP
