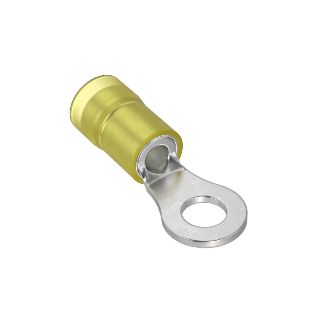

Actual Product May Vary From Image

PN10-10R-L PAN

Name: PN10-10R-L PAN
Brand: Panduit
SKU: PN10-10R-L PAN
Price: 1.53 USD
Availability: InStock

Panduit® Pan-Term™ PN10-10R-L Type PN-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.06 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Yellow

Manufacturer: Panduit

Manufacturer part number: PN10-10R-L

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
50	50	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.53

Qty:

Product Details

Brand Name

Panduit®

Type

Type PN-R

Alternate Supplier #

Grainger - 39AZ47
Fastenal - 0711117

Description

Panduit® Pan-Term™ Ring Terminal, Type PN-R Loose Piece, Solid/Stranded Conductor, 10 AWG Conductor, #10 Stud, 1.06 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.38 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Nylon Insulation, 0.31 in Clearance, 9/32 in L Wire Strip, 9/32 in Mounting Hole Size, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications

Specifications

Barrel Type:	Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.06 in L x 0.38 in W
Finish:	Tin Plated
Length:	1.06 in
Material:	Copper
Specifications:	0.225 in Dia Nylon Insulation, 0.31 in Clearance, 9/32 in L Wire Strip, 9/32 in Mounting Hole Size, Ring Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.38 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
