PN10-6F-L PAN

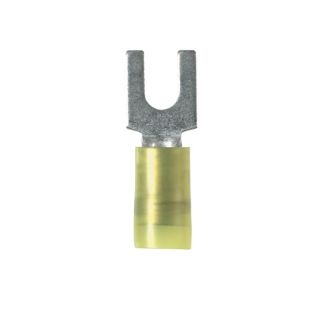

Picture of PN10-6F-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PN10-6F-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.64 / EA

Description

Brand Name

Panduit®

Type

Loose Piece

Alternate Supplier #

Grainger - 39AZ54
Fastenal - 99199041

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PN-F, Copper Stranded Conductor, #10 Conductor, #6 Stud, 1 in Length, Sleeved Barrel, Standard Fork Tongue, 0.31 in W x 0.04 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.22 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

ABS Approved | ARRA Compliant | BAA Compliant | CSA C22.2 File No 65 File No LR31212 | RoHS Compliant | UL 486A/486B | UL 587H File No E52164 | UL 94 V-2/HB Flammability Rated | Buy American Act Compliant

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Insulation support helps to prevent wire damage in bending applications
  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time

Specifications

Barrel Type:Insulation Grip Sleeve/Standard
Color:Yellow
Conductor Size:#10
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:1 in L x 0.31 in W
Finish:Tin Plated
Length:1 in
Material:Copper
Series:PN-F
Specifications:9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.22 in Clearance, Standard Barrel Configuration, Fork Shape Enclosure
Stud Size:#6
Temperature Rating:221 deg F
Tongue Size:0.31 in W x 0.04 in THK
Tongue Type:Standard Fork
Voltage Rating:600 V
