PN12-38HDR-D PAN

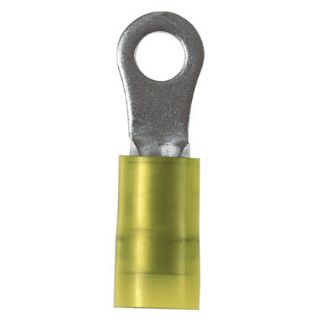

Name: PN12-38HDR-D PAN
Brand: Panduit
SKU: PN12-38HDR-D PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PN12-38HDR-D

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Heavy Duty

Description

Panduit® Pan-Term® Ring Terminal, Heavy Duty, Series: PN-HDR, Solid/Stranded Conductor, 16 to 12 AWG Conductor, 3/8 in Stud, 1.3 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.58 in W x 0.05 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.46 in Clearance, 0.225 in Dia Nylon Insulation, 0.28 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

Features

Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty applications
Insulation housing is marked with HDR to signify heavy duty ring
Ring tongue design assures a secure connection in high vibration applications
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard
Color:	Yellow
Conductor Size:	16 to 12 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.3 in L x 0.58 in W
Finish:	Tin Plated
Length:	1.3 in
Material:	Copper
Series:	PN-HDR
Specifications:	0.28 in L Wire Strip, 0.23 in Dia Nylon Insulation, 0.46 in Clearance, 7.1 mm Mounting Size
Stud Size:	3/8 in
Temperature Rating:	221 deg F
Tongue Size:	0.58 in W x 0.05 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
