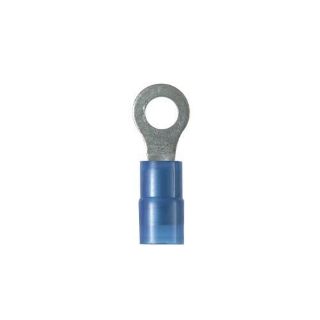

Actual Product May Vary From Image

PN14-10R-C PAN

Name: PN14-10R-C PAN
Brand: Panduit
SKU: PN14-10R-C PAN
Price: 1.26 USD
Availability: InStock

Panduit® Pan-Term™ PN14-10R-C Type PN-R Ring Terminal, 14 AWG Conductor, 0.85 in L, Brazed Seam/Standard/Internal Serration/Insulation Support Barrel, Copper, Blue

Manufacturer: Panduit

Manufacturer part number: PN14-10R-C

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
100	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.26

Qty:

Product Details

Brand Name

Panduit®

Type

Type PN-R

Alternate Supplier #

Grainger - 39AZ61
Fastenal - 0711121

Description

Panduit® Pan-Term™ Ring Terminal, Type PN-R, Solid/Stranded Conductor, 14 AWG Conductor, #10 Stud, 0.85 in Length, Brazed Seam/Standard/Internal Serration/Insulation Support Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Standard/Internal Serration/Insulation Support
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.85 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.85 in
Material:	Copper
Specifications:	0.162 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
