PN14-14F-C PAN

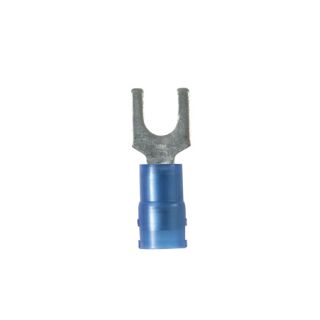

Picture of PN14-14F-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PN14-14F-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.62 / EA

Description

Brand Name

Panduit®

Type

Loose Piece Standard

Alternate Supplier #

Grainger - 39AZ63
Fastenal - 99199106

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece Standard, Series: PN-F, Copper Stranded Conductor, #14 Conductor, 1/4 in Stud, 1.02 in Length, Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.44 in W x 0.032 in THK Tongue, 600 V, Specifications: 7/32 in Wire Strip, 0.162 in Dia Nylon Insulation, 0.03 in THK Stock, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/LR31212 | RoHS Compliant | UL 486A/486B | UL 587H File No. E52164 | UL94 V-2 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Flange design provides extra secure connection on a variety of applications
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • For Y10D, Y10-22 plier ratchet and MRE1022NV MR8-89-1 ratcheting installation tooling

Specifications

Barrel Type:Insulation Grip Sleeve
Color:Blue
Conductor Size:#14
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:1.02 in L x 0.44 in W
Finish:Tin Plated
Length:1.02 in
Material:Copper
Series:PN-F
Specifications:7/32 in L Wire Strip, 0.16 in Dia Maximum Wire Insulation
Stud Size:1/4 in
Temperature Rating:221 deg F
Tongue Size:0.44 in W x 0.03 in THK
Tongue Type:Standard
Voltage Rating:600 V
