PN14-14R-M PAN

Name: PN14-14R-M PAN
Brand: Panduit
SKU: PN14-14R-M PAN
Price: 0.69 USD
Availability: OutOfStock

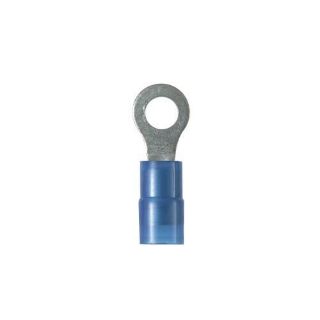

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PN14-14R-M

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.69 / EA

Description

Brand Name

Panduit®

Type

Type PN-R

Alternate Supplier #

Grainger - 39AZ65

Description

Panduit® Pan-Term™ Ring Terminal, Type PN-R, Solid/Stranded Conductor, 14 AWG Conductor, 1/4 in Stud, 1.05 in Length, Seamed/Standard/Internal Serration/Insulation Support Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 0.22 in Mounting Hole Size, 0.38 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Insulation support helps to prevent wire damage in bending applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Seamed/Standard
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.05 in L x 0.46 in W
Finish:	Tin Plated
Length:	1.05 in
Material:	Copper
Specifications:	0.162 in Dia Nylon Insulation, 0.22 in Mounting Hole Size, 0.38 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.46 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
