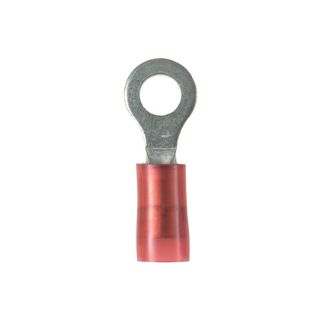

Actual Product May Vary From Image

PN18-10R-C PAN

Name: PN18-10R-C PAN
Brand: Panduit
SKU: PN18-10R-C PAN
Price: 1.26 USD
Availability: InStock

Panduit® Pan-Term™ PN18-10R-C Type PN-R Ring Terminal, 18 AWG Conductor, 0.87 in L, Seamed/Standard/Insulation Grip Sleeve Barrel, Copper, Red

Manufacturer: Panduit

Manufacturer part number: PN18-10R-C

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	300	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.26

Qty:

Product Details

Brand Name

Panduit®

Type

Type PN-R

Alternate Supplier #

Grainger - 39AZ75
Fastenal - 0728393

Description

Panduit® Pan-Term™ Ring Terminal, Type PN-R, Solid/Stranded Conductor, 18 AWG Conductor, #10 Stud, 0.87 in Length, Seamed/Standard/Insulation Grip Sleeve Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.145 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Ring tongue design assures a secure connection in high vibration applications
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Seamed/Standard
Color:	Red
Conductor Size:	18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.87 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.87 in
Material:	Copper
Specifications:	0.145 in Dia Nylon Insulation, 7/32 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 V
