PN18-14F-3K PAN

Name: PN18-14F-3K PAN
Brand: Panduit
SKU: PN18-14F-3K PAN
Availability: OutOfStock

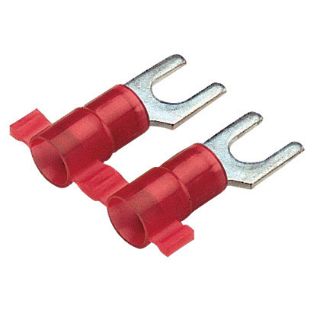

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PN18-14F-3K

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Reel Fed

Description

Panduit® Pan-Term™ Reel Smart™ Fork Terminal, Reel Fed, Series: PN-F, Stranded Copper Conductor, 22 to 18 AWG Conductor, 1/4 in Stud, 1.03 in Length, Insulation Grip Sleeve Barrel, Standard Fork Tongue, 0.44 in W Tongue, 600 VAC, 0.22 in L Wire Strip, 0.15 in Nylon Insulation, Standard Barrel Configuration, 221 deg F, Copper, Tin Plated, Red

Standards

Features

Locks in place for secure connection
Fork design provides for fast and easy installation, without the need to remove fastener
Internal barrel serrations assure good wire contact and maximum tensile strength
Barrel of terminal internally beveled to provide quick and easy wire insertion
Brazed seam protects terminal barrel from splitting during the crimp process
Non-expanded insulation

Specifications

Barrel Type:	Insulation Grip Sleeve
Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Finish:	Tin Plated
Length:	1.03 in
Material:	Copper
Series:	PN-F
Specifications:	0.22 in L Wire Strip, 0.15 in Nylon Insulation, Standard Barrel Configuration
Stud Size:	1/4 in
Temperature Rating:	221 deg F
Tongue Size:	0.44 in W
Tongue Type:	Standard Fork
Voltage Rating:	600 VAC
