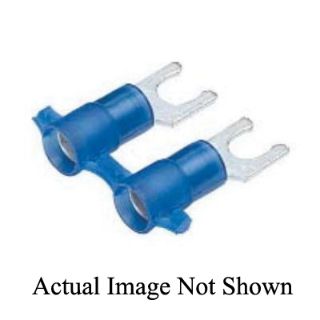

PN18-5SLF-3K PAN

The Panduit® continuously molded Reel Smart™ products are designed such that the terminal, disconnect and butt splice housings are connected by an integral molded carrier in the barrel crimp zone, producing a continuous length of product. Plated metal terminals, disconnects and splices are then assembled into the housings. During termination, the continuously molded components are fed into a universal applicator. This process produces a reel-fed solution that eliminates a variety of problems associated with other reel-fed designs and provides high quality, high capacity product on reels for longer, uninterrupted production runs - resulting in the lowest installed cost.

Panduit®, PN18-5SLF-3K, Fork Terminal, Insulated, Series: PN-SLF, Stranded Conductor, 22 to 18 AWG Conductor, #5 Stud, 3/4 in Length, Non-Funnel Entry/Sleeve/Standard Barrel, Short Locking Fork Tongue, 0.26 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 7/32 in L Wire Strip, 0.145 in Dia Maximum Wire Nylon Insulation, 0.19 in Clearance, 221 deg F, Copper, Tin Plated, Red
