PN18-6RN-C PAN

Name: PN18-6RN-C PAN
Brand: Panduit
SKU: PN18-6RN-C PAN
Price: 1.41 USD
Availability: OutOfStock

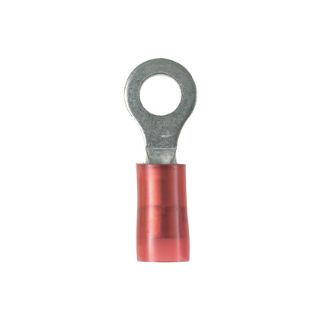

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PN18-6RN-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1.41 / EA

Description

Brand Name

Panduit®

Type

Type PN-R Insulated

Description

Panduit® Pan-Term™ Ring Terminal, Type PN-RN Reel, Solid/Stranded Conductor, 22 AWG Conductor, #6 Stud, 0.77 in Length, Brazed Seam/Seamed/Sleeved/Standard/Internal Serration/Insulation Support Barrel, Narrow Ring Tongue, 0.22 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.145 in Dia Nylon Insulation, 0.18 in Clearance, 0.21 in Mounting Hole Size, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Insulation support helps to prevent wire damage in bending applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:	Brazed Seam/Seamed/Sleeved/Standard/Internal Serration/Insulation Support
Color:	Red
Conductor Size:	22 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.77 in L x 0.22 in W
Finish:	Tin Plated
Length:	0.77 in
Material:	Copper
Specifications:	0.145 in Dia Nylon Insulation, 0.18 in Clearance, 0.21 in Mounting Hole Size, 7/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#6
Temperature Rating:	221 deg F
Tongue Size:	0.22 in W x 0.03 in THK
Tongue Type:	Narrow Ring
Voltage Rating:	600 VAC
