PN18-6SLF-M PAN

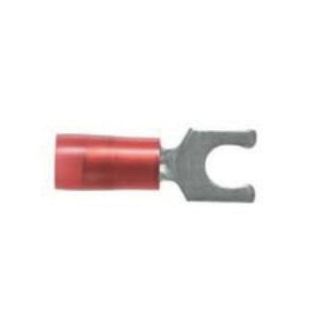

Picture of PN18-6SLF-M PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PN18-6SLF-M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Type PN-SLF

Description

Panduit® Pan-Term® Terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term™ Fork Terminal, Type PN-SLF, Stranded Copper Conductor, 22 to 18 AWG Conductor, #6 Stud, 3/4 in Length, Seamed/Insulation Grip Sleeve Barrel, Short Locking Fork Tongue, 0.27 in W x 0.03 in THK Tongue, 600 VAC, Specifications: Nylon Insulated, 0.145 in Dia Maximum Wire Insulation, 7/32 in L Wire Strip, 0.63 in Barrel to Hole Length, 221 deg F, Electrolytic Copper, Tin Plated, Red

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ANSI/TIA-568-C.2 Cat 5e | ANSI/TIA-968-A | IEEE 802.3af/802.3at | IEC 60603-7 | UL 1863

Features

  • Lock in place for secure connection in limited spaces
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Seamed/Insulation Grip Sleeve
Color:Red
Conductor Size:22 to 18 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Finish:Tin Plated
Length:3/4 in
Material:Electrolytic Copper
Specifications:Nylon Insulated, 0.145 in Dia Maximum Wire Insulation, 7/32 in L Wire Strip, 0.63 in Barrel to Hole Length
Stud Size:#6
Temperature Rating:221 deg F
Tongue Size:0.27 in W x 0.03 in THK
Tongue Type:Short Locking Fork
Voltage Rating:600 VAC
