PNF10-8F-L PAN

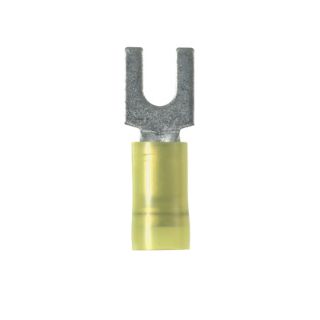

Picture of PNF10-8F-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PNF10-8F-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2.10 / EA
This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

Loose Piece

Alternate Supplier #

Fastenal - 0726853

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PNF-F, Copper Stranded Conductor, #10 Conductor, #8 Stud, 1.02 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/LR31212 | RoHS Compliant | UL 486A | UL 486B/587H File No. E52164 | UL94 V-2 Flammability Rated/UL94 HB Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Flange design provides extra secure connection on a variety of applications

Specifications

Barrel Type:Beveled Edge/Funnel Entry/Insulation Grip Sleeve/Serrated
Color:Yellow
Conductor Size:#10
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:1.02 in L x 0.37 in W
Finish:Tin Plated
Length:1.02 in
Material:Copper
Series:PNF-F
Specifications:9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, Fork Shape Enclosure
Stud Size:#8
Temperature Rating:221 deg F
Tongue Size:0.37 in W x 0.04 in THK
Tongue Type:Fork
Voltage Rating:600 V
