PNF14-8F-C PAN

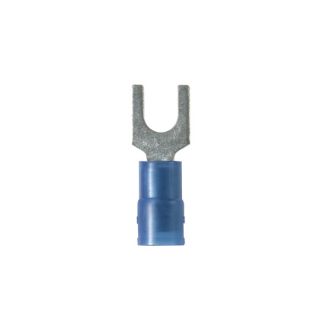

Picture of PNF14-8F-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PNF14-8F-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.63 / EA
This product has a minimum quantity of 100

Description

Brand Name

Panduit®

Type

Loose Piece

Alternate Supplier #

Grainger - 62PN34
Fastenal - 0726861

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PNF-F, Copper Stranded Conductor, #14 Conductor, #8 Stud, 0.85 in Length, Funnel Entry/Sleeved/Internal Serration Barrel, Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.162 in Dia Nylon Insulation, 0.31 in Mounting Hole, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | RoHS Compliant | UL 486A/486B | UL 587H File No. E52184/LR31212 | UL94 V-2 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:Brazed Seam/Funnel Entry/Insulation Grip Sleeve
Color:Blue
Conductor Size:#14
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:0.86 in L x 0.31 in W
Finish:Tin Plated
Length:0.85 in
Material:Copper
Series:PNF-F
Specifications:5/16 in L Wire Strip, 0.16 in Dia Maximum Wire Insulation, 1/4 in Clearance
Stud Size:#8
Temperature Rating:221 deg F
Tongue Size:0.31 in W x 0.03 in THK
Tongue Type:Fork
Voltage Rating:600 V
