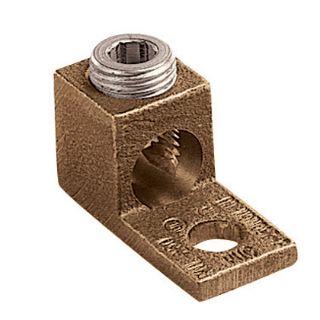

PNL-250-Q PAN

Name: PNL-250-Q PAN
Brand: Panduit
SKU: PNL-250-Q PAN
Price: 24.16 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PNL-250-Q

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$24.16 / EA

Description

Brand Name

Panduit®

Type

1-Barrel

Description

Panduit® Pan-Lug™ Mechanical Connector Lug, 1-Barrel, Series: PNL, Solid/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1 in L x 0.94 in W x 0.13 in THK Tongue, Straight Tongue, 600 VAC, 5/16 in Hex Key, 90 deg C, Copper, 1.97 in L x 0.94 in W x 1.05 in H

Application

For stranded copper code conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No.65-13 | RoHS Compliant | UL File No. 486A/486B/E52164

Features

Cast from high strength corrosion resistant copper alloy to provide premium electrical and mechanical performance
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel set screw provides high strength, durable electrical contact between conductor and connector
Flat bottom allows for complete contact with mounting surface
Compact design saves space
Corrosion-resistant copper alloy, compact design, inspection window and high strength connection

Specifications

Conductor Size:	6 AWG to 250 kcmil
Conductor Type:	Solid Copper
Country of Origin:	IN
Dimensions:	1.97 in L x 0.76 in W
Material:	Cast Copper
Number of Bolt Holes:	1
Series:	PNL
Specifications:	5/16 in Hex Key
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1 in L x 0.13 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
