PP203 BLT

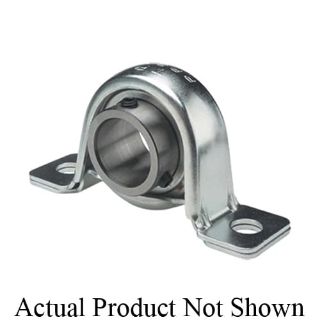

Picture of PP203 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
PP203
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4.71 / EA

Description

Brand Name

TRITAN®

Description

TRITAN® Pillow Block Housing, 1/2 in, 5/8 in, 11/16 in ID, 7/8 in Base to Bore Centerline, 3-3/8 in Overall Length, 1 in Overall Width, 1-23/32 in Overall Height, Compatible Bore Diameter: 1/2 in, 5/8 in, 11/16 in, Compatible Bearing Type: SB201/SB201-8/SB202/SB202-10/SB203/SB203-11 Deep Groove Ball Bearings, 2-11/16 in Bolt Center-to-Center Length, 1 in Base Width, Pressed Steel, Zinc Plated

Application

For machinery applications

Standards

American Petroleum Institute | ANSI B-29-1 | BS Certified | DIN 8196 | JIS 1801

Specifications

Base to Bore Centerline:7/8 in
Base Width:1 in
Bolt Center-to-Center Length:2-11/16 in
Compatible Bearing Type:SB201/SB201-8/SB202/SB202-10/SB203/SB203-11 Deep Groove Ball Bearings
Compatible Bore Diameter:1/2 in, 5/8 in, 11/16 in
Finish:Zinc Plated
Inside Diameter:1/2 in, 5/8 in, 11/16 in
Material:Pressed Steel
Overall Height:1-23/32 in
Overall Length:3-3/8 in
Overall Width:1 in
