PP205 BLT

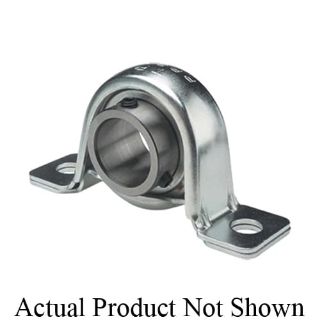

Picture of PP205 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
PP205
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5.78 / EA

Description

Brand Name

TRITAN®

Description

TRITAN® Pillow Block Housing, 7/8 in, 15/16 in, 1 in ID, 1-1/8 in Base to Bore Centerline, 4-1/4 in Overall Length, 1-1/4 in Overall Width, 2-7/32 in Overall Height, Compatible Bore Diameter: 7/8 in, 15/16 in, 1 in, Compatible Bearing Type: SB205-14/SB205-15/SB205/SB205-16 Deep Groove Ball Bearings, 3-3/8 in Bolt Center-to-Center Length, 1-1/4 in Base Width, Pressed Steel, Zinc Plated

Application

For machinery applications

Standards

American Petroleum Institute | ANSI B-29-1 | BS Certified | DIN 8196 | JIS 1801

Specifications

Base to Bore Centerline:1-1/8 in
Base Width:1-1/4 in
Bolt Center-to-Center Length:3-3/8 in
Compatible Bearing Type:SB205-14/SB205-15/SB205/SB205-16 Deep Groove Ball Bearings
Compatible Bore Diameter:7/8 in, 15/16 in, 1 in
Finish:Zinc Plated
Inside Diameter:7/8 in, 15/16 in, 1 in
Material:Pressed Steel
Overall Height:2-7/32 in
Overall Length:4-1/4 in
Overall Width:1-1/4 in
