PS69-DPM PRS

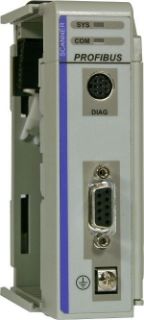

Picture of PS69-DPM PRS
Actual Product May Vary From Image

Product Details

Manufacturer:
Prosoft Technology
Manufacturer part number:
PS69-DPM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,699.00 / EA

Description

Brand Name

PROSOFT

Type

Communication Module

Description

PROFIBUS DP Master module expands the functionality of Rockwell Automation's CompactLogix? family of processors to include PROFIBUS. This module supports both I/O control and messaging, thus integrating DPV0 and DPV1 functionality into CompactLogix.

Application

Enables Controllers to Communicate with a PROFIBUS Network

Features

PROFIBUS certified; FDT configuration software and communication included; Sample ladder program; Supports CIP ladder logic messaging.

Specifications

Communication:PROFIBUS DPV1
Connection Cables:RJ45 to DB-9M
Country of Origin:USA
Display:2 X 24 Alphanumeric; Clock And Date
Height:5.18"
Interface:RS-232; RS-485; RS-422
Length:3.42"
Mounting:DIN rail or panel mount
Number of Channels:2;4
Operating Temperature:0 to 60°C (32 to 140°F)
Power Supply:800 mA max@ 5 VDC
Sub Brand:MV69
Width:2.22"

Resources

Spec SheetWarranty

Products Specifications

Brand Name
ProSoft
Connectivity
Serial
Protocol
DPV1
Type
PROFIBUS Communication Module
