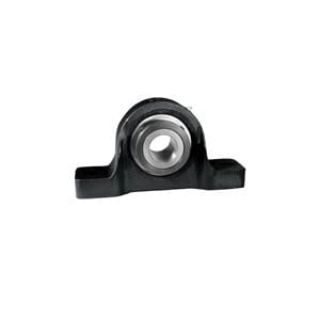

Actual Product May Vary From Image

PU319 LBB

Name: PU319 LBB
Brand: Rexnord
SKU: PU319 LBB
Price: 371.82 USD
Availability: OutOfStock

Link-Belt® PU319 300 Heavy Duty Pillow Block Ball Bearing, 1-3/16 in Dia Bore, 6-7/16 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 8-1/4 in OAL x 4-1/16 in OAH

Manufacturer: Rexnord

Manufacturer part number: PU319

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$371.82

Qty:

Product Details

Brand Name

Link-Belt®

Type

Heavy Duty

Description

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.

Link-Belt® Pillow Block Ball Bearing, Heavy Duty, Series: 300, 1-3/16 in Bore, 6-7/16 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 8-1/4 in Overall Length, 1-59/64 in Overall Width, 4-1/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/4 in Base Width, Set Screw Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 6320 lb Dynamic/3530 lb Static Load, 225 deg F, 8300 rpm Maximum, Cast Iron, Powder Coated

Application

Aggregates, Air Handling, Forestry, Mining, Steel and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Provides a cool running, quiet, high-speed and high-load capacity bearing
Wide inner ring is for greater contact surface between shaft and bearing
Case carburized inner ring resists fracture under shock and heavy loads
Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
Standard backing
Bearing sealed unit
Alignable and relubricatable
Steel clad clearance seal

Specifications

Base to Bore Centerline:	2-1/8 in
Base Width:	2-1/4 in
Bolt Center-to-Center Length:	6-7/16 in
Bore Diameter:	1-3/16 in
Bore Type:	Round
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	6320 lb Dynamic/3530 lb Static
Locking Device:	Set Screw
Material:	Cast Iron
Maximum Speed:	8300 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	4-1/16 in
Overall Length:	8-1/4 in
Overall Width:	1-59/64 in
Seal Type:	Clearance
Series:	300
Temperature Rating:	225 deg F

Resources

Video

Customers who bought this item also bought

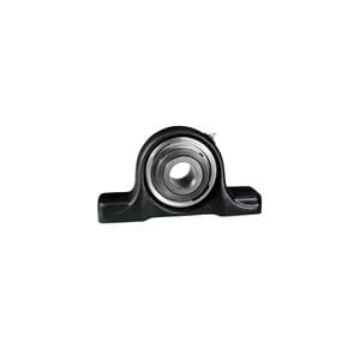

PEU319 LBB
