PV10-10LF-L PAN

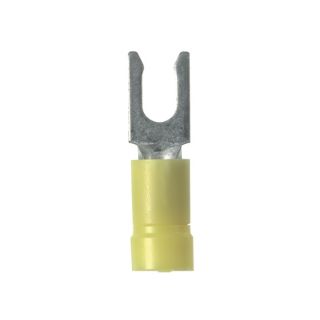

Picture of PV10-10LF-L PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV10-10LF-L
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.37 / EA

Description

Brand Name

Panduit®

Type

Type PV-LF Loose Piece

Alternate Supplier #

Grainger - 62PP93
Fastenal - 0711125

Description

Panduit® Pan-Term® Fork Terminal, Type PV-LF Loose Piece, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.04 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Locking Fork Tongue, 0.34 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Vinyl Insulation, 0.23 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | RoHS Compliant | UL 486A/486B | UL 587H File No. E52164/LR31212 | UL94 V-0 Flammability Rated

Features

  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Insulation support helps to prevent wire damage in bending application
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Beveled Edge/Brazed Seam/Funnel Entry/Serrated
Color:Yellow
Conductor Size:12 to 10 AWG
Conductor Type:Stranded Copper
Country of Origin:MX
Dimensions:1.04 in L x 0.34 in W
Finish:Tin Plated
Length:1.04 in
Material:Copper
Specifications:0.225 in Dia Vinyl Insulation, 0.23 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Fork Shape Enclosure
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.34 in W x 0.04 in THK
Tongue Type:Locking
Voltage Rating:600 VAC
