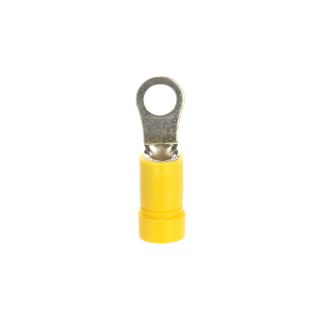

Actual Product May Vary From Image

PV10-10R-L PAN

Name: PV10-10R-L PAN
Brand: Panduit
SKU: PV10-10R-L PAN
Price: 1.10 USD
Availability: InStock

Panduit® Pan-Term™ PV10-10R-L Type PV-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.05 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Yellow

Manufacturer: Panduit

Manufacturer part number: PV10-10R-L

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
50	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.10

Qty:

Product Details

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39AZ90
Fastenal - 0753401

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 10 AWG Conductor, #10 Stud, 1.05 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Vinyl Insulation, 0.225 in Dia Vinyl Insulation, 0.31 in Clearance, 5/16 in L Wire Strip, 5/16 in Mounting Hole Size, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Ring tongue design assures a secure connection in high vibration applications
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.05 in L x 0.31 in W
Finish:	Tin Plated
Length:	1.05 in
Material:	Copper
Specifications:	0.225 in Dia Vinyl Insulation, 0.225 in Dia Vinyl Insulation, 0.31 in Clearance, 5/16 in L Wire Strip, 5/16 in Mounting Hole Size, Ring Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
