PV14-10LF-C PAN

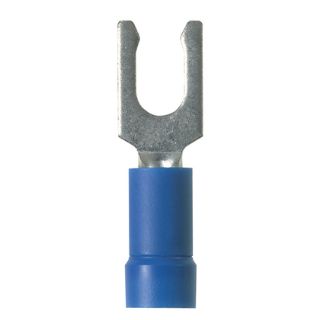

Picture of PV14-10LF-C PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV14-10LF-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.04 / EA

Description

Brand Name

Panduit®

Type

Loose Piece

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PV-LF, Copper Stranded Conductor, #14 Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.33 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

ABS Approved | ARRA Compliant | BAA Compliant | CSA C22.2 File No 65 File No LR31212 | RoHS Compliant | UL 486A/486B | UL 587H File No E52164 | UL 94 V-0 Flammability Rated | Buy American Act Compliant

Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Beveled Edge/Brazed Seam/Funnel Entry/Serrated
Color:Blue
Conductor Size:#14
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:0.97 in L x 0.33 in W
Finish:Tin Plated
Length:0.97 in
Material:Copper
Series:PV-LF
Specifications:5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 1/4 in Clearance
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.33 in W x 0.03 in THK
Tongue Type:Locking Fork
Voltage Rating:600 VAC
