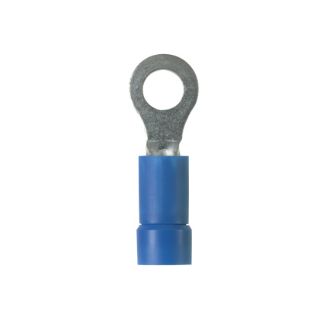

Actual Product May Vary From Image

PV14-10R-C PAN

Name: PV14-10R-C PAN
Brand: Panduit
SKU: PV14-10R-C PAN
Price: 0.85 USD
Availability: InStock

Panduit® Pan-Term™ PV14-10R-C Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 0.92 in L, Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue

Manufacturer: Panduit

Manufacturer part number: PV14-10R-C

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
400	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.85

Qty:

Product Details

Brand Name

Panduit®

Type

Type PV-R Loose Piece

Alternate Supplier #

Grainger - 39CA11

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, Vinyl Insulation, 221 deg F, Copper, Tin Plated, Blue

Standards

Features

Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Butted Seam/Funnel Entry/Insulation Support/Internal Serration
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.92 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.92 in
Material:	Copper
Specifications:	0.31 in L Wire Strip, 0.17 in Dia Maximum Wire Insulation, 1/4 in Clearance, 7.9 mm Mounting Size
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
