PV14-10R-E PAN

Name: PV14-10R-E PAN
Brand: Panduit
SKU: PV14-10R-E PAN
Availability: OutOfStock

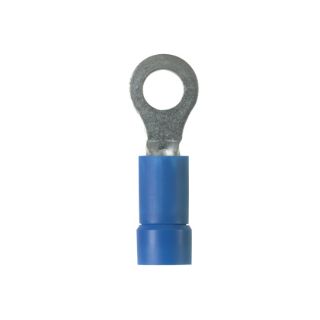

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PV14-10R-E

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PV-R Loose Piece

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #10 Stud, 0.92 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, 0.31 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, Vinyl Insulation, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

Insulation support helps to prevent wire damage in bending applications
Ring tongue design assures a secure connection in high vibration applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.92 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.92 in
Material:	Copper
Specifications:	0.31 in L Wire Strip, Non-Expanded Insulation
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
