PV14-10RX-C PAN

Name: PV14-10RX-C PAN
Brand: Panduit
SKU: PV14-10RX-C PAN
Price: 1.07 USD
Availability: OutOfStock

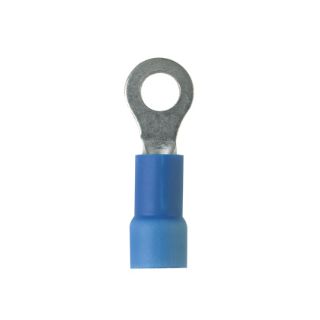

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PV14-10RX-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1.07 / EA

Description

Brand Name

Panduit®

Type

Type PV-RX

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-RX Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, #10 Stud, 0.96 in Length, Beveled Edge/Brazed Seam/Expanded Entry/Serrated Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.2 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
Ring tongue design assures a secure connection in high vibration applications
Insulation support helps to prevent wire damage in bending applications

Specifications

Barrel Type:	Beveled Edge/Brazed Seam/Expanded Entry/Serrated
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.96 in L x 0.31 in W
Finish:	Tin Plated
Length:	0.96 in
Material:	Copper
Specifications:	0.2 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.31 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
