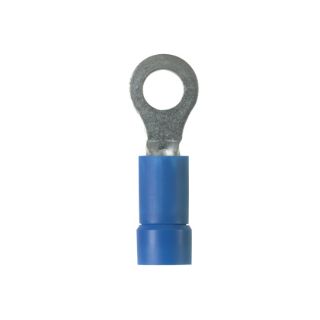

PV14-12R-L PAN

Name: PV14-12R-L PAN
Brand: Panduit
SKU: PV14-12R-L PAN
Price: 2.10 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PV14-12R-L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2.10 / EA

Description

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39CA13

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, 1/2 in Stud, 1.42 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.72 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.53 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue

Application

High Vibration Applications

Standards

Features

For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
Natural with appropriate color stripe to identify wire range
Ring tongue design assures a secure connection in high vibration applications
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications

Specifications

Barrel Type:	Brazed Seam/Funnel Entry/Insulation Support
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.42 in L x 0.72 in W
Finish:	Tin Plated
Length:	1.42 in
Material:	Copper
Specifications:	0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.53 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/2 in
Temperature Rating:	221 deg F
Tongue Size:	0.72 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
