PV18-10F-CY PAN

Name: PV18-10F-CY PAN
Brand: Panduit
SKU: PV18-10F-CY PAN
Price: 0.85 USD
Availability: InStock

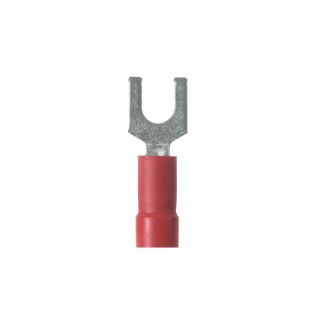

Panduit® Pan-Term® PV18-10F-CY Type PV-F Loose Piece Fork Terminal, 22 to 16 AWG Conductor, 0.93 in L, Brazed Seam/Funnel Entry Barrel, Copper, Red

Manufacturer: Panduit

Manufacturer part number: PV18-10F-CY

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
100	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.85

Qty:

Product Details

Brand Name

Panduit®

Type

Type PV-F Loose Piece

Alternate Supplier #

Grainger - 39CA31
Fastenal - 0711143

Description

Panduit® Pan-Term® Fork Terminal, Type PV-F Loose Piece, Stranded Copper Conductor, 22 to 16 AWG Conductor, #10 Stud, 0.93 in Length, Brazed Seam/Funnel Entry Barrel, Fork Tongue, 0.35 in W x 0.032 in THK Tongue, 600 V, Specifications: 0.15 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Standards

Features

Locks in place for secure connection
Fork design provides for fast and easy installation, without the need to remove fastener
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Funnel Entry
Color:	Red
Conductor Size:	22 to 16 AWG
Conductor Type:	Stranded Copper
Country of Origin:	MX
Dimensions:	0.93 in L x 0.35 in W
Finish:	Tin Plated
Length:	0.93 in
Material:	Copper
Specifications:	0.15 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 1/4 in Clearance, 5/16 in L Wire Strip, Fork Shape Enclosure
Stud Size:	#10
Temperature Rating:	221 deg F
Tongue Size:	0.35 in W x 0.03 in THK
Tongue Type:	Fork
Voltage Rating:	600 V
