PV18-10FX-CY PAN

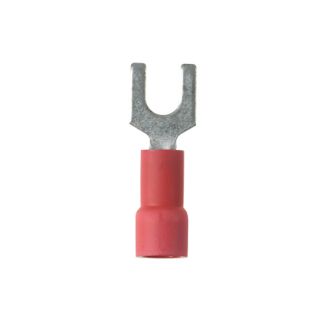

Picture of PV18-10FX-CY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV18-10FX-CY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Insulated

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece Insulated, Series: PV-FX, Copper/Solid/Stranded Conductor, #18 Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Fork Tongue, 0.35 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65 | RoHS Compliant | UL 486A | UL 486B | UL 94 V-0 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Red
Conductor Size:#18
Conductor Type:Copper Stranded
Country of Origin:MX
Dimensions:0.97 in L x 0.35 in W
Finish:Tin Plated
Length:0.97 in
Material:Copper
Series:PV-FX
Specifications:5/16 in L Wire Strip, 0.17 in Dia Maximum Wire Insulation, 1/4 in Clearance, Fork Shape Enclosure
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.35 in W x 0.03 in THK
Tongue Type:Fork
Voltage Rating:600 V
