PV18-14R-CY PAN

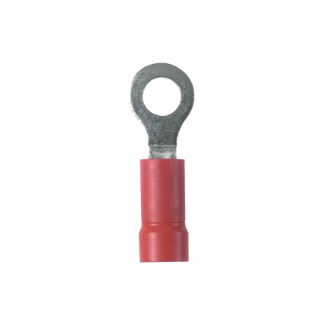

Picture of PV18-14R-CY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV18-14R-CY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.17 / EA

Description

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39CA34
Fastenal - 99200596

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 18 AWG Conductor, 1/4 in Stud, 1.11 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.37 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

ARRA Compliant | Buy American Act Compliant | Buy American Act Compliant | CSA C22.2 File No. 65/LR31212 | RoHS Compliant | UL 486A/486B/587H File No. E52164 | UL94 V-0 Flammability Rated

Features

  • Insulug type YAE-N nylon insulated terminals are designed with a multi-finger insulation grip for paper, EPR and other elastic or hard to grip insulations
  • The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
  • Types YAE-G terminals are rated 105 deg C and meet military standard AS25036 class 2 and SAE-AS7928 requirements
  • Multi-finger insulation grip - Provides superior insulation holding characteristics
  • Especially on epr and other elastic-type insulations
  • Brazed seam provides stronger more durable termination
  • Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Deep V groove, inner barrel serrations - provide optimum conductivity, reliability and holding power
  • Smooth funnel entry provides easy wire insertion
  • Without inspection hole

Specifications

Barrel Type:Brazed Seam/Funnel Entry/Insulation Support
Color:Red
Conductor Size:18 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Dimensions:1.11 in L x 0.46 in W
Finish:Tin Plated
Length:1.11 in
Material:Copper
Specifications:0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.37 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:1/4 in
Temperature Rating:221 deg F
Tongue Size:0.46 in W x 0.03 in THK
Tongue Type:Ring
Voltage Rating:600 V
