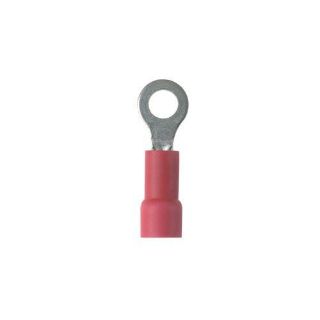

PV18-38RX-LY PAN

Name: PV18-38RX-LY PAN
Brand: Panduit
SKU: PV18-38RX-LY PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PV18-38RX-LY

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Type PV-RX

Description

Panduit® Pan-Term™ Ring Terminal, Type PV-RX, Solid/Stranded Conductor, 18 AWG Conductor, 3/8 in Stud, 1-1/4 in Length, Brazed Seam/Serrated/Expanded Entry/Insulation Grip Sleeve Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.45 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Ring tongue design assures a secure connection in high vibration applications
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Expanded Entry/Serrated
Color:	Red
Conductor Size:	18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	1.25 in L x 0.53 in W
Finish:	Tin Plated
Length:	1-1/4 in
Material:	Copper
Specifications:	0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.45 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	3/8 in
Temperature Rating:	221 deg F
Tongue Size:	0.53 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
