PV18-6LFX-CY PAN

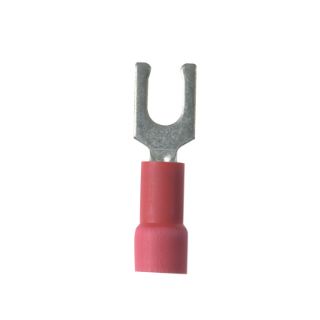

Picture of PV18-6LFX-CY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV18-6LFX-CY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Insulated Loose Piece

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Fork Terminal, Loose Piece Insulated, Series: PV-LFX, Copper/Solid/Stranded Conductor, #16 Conductor, #6 Stud, 0.95 in Length, Brazed Seam/Funnel Entry Barrel, Locking Fork Tongue, 0.27 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Max, 0.2 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure, 221 deg F, Copper/Vinyl, Tin Plated, Red

Standards

ABS Approved | ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65 | RoHS Compliant | UL 486A | UL 486B | UL 94 V-0 Flammability Rated

Features

  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Locks in place for secure connection
  • Insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Expanded insulation for large wire outside diameter

Specifications

Barrel Type:Beveled Edge/Brazed Seam/Funnel Entry/Serrated
Color:Red
Conductor Size:#16
Conductor Type:Copper/Solid/Stranded
Country of Origin:MX
Dimensions:0.95 in L x 0.27 in W
Finish:Tin Plated
Length:0.95 in
Material:Copper
Series:PV-LFX
Specifications:5/16 in L Wire Strip, 0.17 in Dia Max, 0.2 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure
Stud Size:#6
Temperature Rating:221 deg F
Tongue Size:0.27 in W x 0.03 in THK
Tongue Type:Locking Fork
Voltage Rating:600 V
