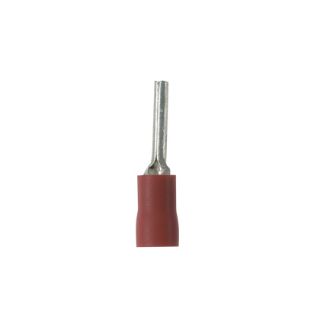

PV18-P47-CY PAN

Name: PV18-P47-CY PAN
Brand: Panduit
SKU: PV18-P47-CY PAN
Price: 1.44 USD
Availability: InStock

Panduit® Pan-Term® PV18-P47-CY Loose Piece Insulated Standard Pin Terminal, 22 to 18 AWG Conductor, 0.07 in Dia x 0.49 in L Pin, Copper, Red

Manufacturer: Panduit

Manufacturer part number: PV18-P47-CY

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
100	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.44

Qty:

Product Details

Brand Name

Panduit®

Type

Funnel Entry Loose Piece Standard

Alternate Supplier #

Grainger - 39CA44
Fastenal - 0753422

Description

The PV18-P47-CY Pan-Term® Terminal is a vinyl insulated, pin terminal. The solid pin is designed to prevent damage to the wire from over-tightening, resulting in a reliable electrical connection. The insulation support helps prevent wire damage in bending applications and the brazed seam protects terminal barrel from splitting during the crimp process.

Panduit® Pan-Term® Pin Terminal, Loose Piece Insulated Standard, Series: PV, Copper/Solid/Stranded Conductor, 22 to 18 AWG Conductor, 0.07 in Pin Diameter, 0.49 in Pin Length, 600 VAC, Specifications: 0.03 in Stock, 0.15 in Dia Maximum Vinyl Insulation, 5/16 in L Wire Strip, Copper, 221 deg F, 0.97 in Overall Length, Red

Application

For pin type terminal blocks

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 486A/486B | UL94 V-0 Flammability Rated

Features

Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
Insulation support helps to prevent wire damage in bending applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength
Pin shape enclosure
Tin-plated finish

Specifications

Color:	Red
Conductor Size:	0.5 to 1 sq-mm
Conductor Type:	Copper/Solid/Stranded
Country of Origin:	MX
Die Code:	CT-100A, CT-260, CT-1550, CT-1551, CT-2500
Dimensions:	0.15 in Dia
Material:	Copper
Overall Length:	0.97 in
Pin Diameter:	0.07 in
Pin Length:	0.49 in
Series:	PV
Specifications:	0.03 in Stock, 0.15 in Dia Maximum Vinyl Insulation, 5/16 in L Wire Strip
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
