PV8-10R-TY PAN

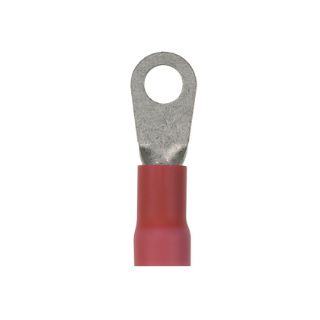

Picture of PV8-10R-TY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV8-10R-TY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.34 / EA
This product has a minimum quantity of 200

Description

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39CA50
Fastenal - 0728371

Description

Panduit® Pan-Term® Ring Terminal, Type PV-R Loose Piece, Stranded Conductor, 8 AWG Conductor, #10 Stud, 1.53 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole Size, 0.38 in Mounting Hole Size, 0.43 in Clearance, 3/8 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

For high density barrier terminal blocks

Standards

ARRA Compliant | Buy American Act Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | cULus 587H File No. E52164 | RoHS Compliant | UL 486A | UL 486B | UL94 V-0 Flammability Rated

Features

  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Ring tongue design assures a secure connection in high vibration applications
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Red
Conductor Size:8 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:1.53 in L x 0.47 in W
Finish:Tin Plated
Length:1.53 in
Material:Copper
Specifications:0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole Size, 0.38 in Mounting Hole Size, 0.43 in Clearance, 3/8 in L Wire Strip, Ring Shape Enclosure
Stud Size:#10
Temperature Rating:221 deg F
Tongue Size:0.47 in W x 0.04 in THK
Tongue Type:Ring
Voltage Rating:600 V
