PV8-14R-QY PAN

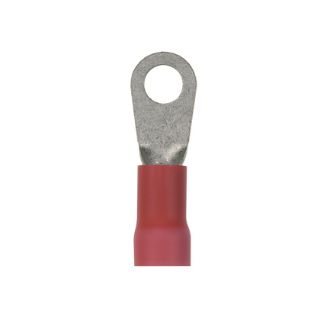

Picture of PV8-14R-QY PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
PV8-14R-QY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3.39 / EA

Description

Brand Name

Panduit®

Type

Type PV-R

Alternate Supplier #

Grainger - 39CA52
Fastenal - 0726883

Description

Panduit® Pan-Term® Ring Terminal, Type PV-R Loose Piece, Stranded Conductor, 8 AWG Conductor, 1/4 in Stud, 1.53 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.47 in W x 0.04 in THK Tongue, 600 VAC, 0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole Size, 0.43 in Clearance, 3/8 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | cULus 587H File No. E52164 | RoHS Compliant | UL 486A/486B | UL94 V-0 Flammability Rated

Features

  • One hole with inspection hole
  • AN-2 size aircraft cable
  • Nylon insulation the insulug type YAEV-l is designed for very demanding high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals
  • Industrials and generating plants
  • The nylon insulated seamless
  • Electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
  • The terminal is rated 105 deg C and meets SAE-AS7928 requirements
  • Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection
  • Manufactured of pure electrolytic copper provides maximum conductivity
  • Low-resistance with no seams to split plus ductility for excellent crimp forming properties
  • Electro-tin plated provides durable long-lasting corrosion-resistance
  • Nylon insulation is locked in place insulation will not move or twist off
  • 300 V nylon insulation- high dielectric strength and stability in demanding oily environmental conditions
  • Pure electrolytic copper
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Red
Conductor Size:8 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:1.53 in L x 0.47 in W
Finish:Tin Plated
Length:1.53 in
Material:Copper
Specifications:0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole Size, 0.43 in Clearance, 3/8 in L Wire Strip, Ring Shape Enclosure
Stud Size:1/4 in
Temperature Rating:221 deg F
Tongue Size:0.47 in W x 0.04 in THK
Tongue Type:Ring
Voltage Rating:600 VAC
