PV8-38R-QY PAN

Product Details

Manufacturer:
Manufacturer part number:
PV8-38R-QY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Panduit®

Type

Loose Piece

Alternate Supplier #

Grainger - 39CA54
Fastenal - 0726884

Description

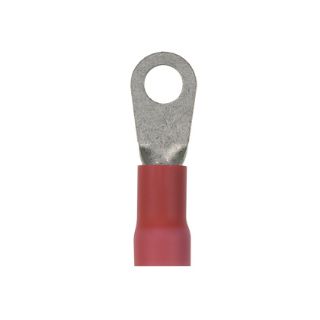

Panduit® Pan-Term® Ring Terminal, Loose Piece, Series: PV-R, Stranded Conductor, 8 AWG Conductor, 3/8 in Stud, 1.64 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 V, Specifications: 3/8 in L Wire Strip, 0.51 in Clearance, 0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 65 | RoHS Compliant | UL 486A | UL 486B/587H | UL Listed File No. E52164 | UL 94 V-0 Flammability Rated

Features

  • Insulation support helps to prevent wire damage in bending applications
  • Ring tongue design assures a secure connection in high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:Brazed Seam/Funnel Entry
Color:Red
Conductor Size:8 AWG
Conductor Type:Stranded
Country of Origin:MX
Dimensions:1.64 in L x 0.59 in W
Finish:Tin Plated
Length:1.64 in
Material:Copper
Series:PV-R
Specifications:0.37 in L Wire Strip, Non-Expanded Insulation
Stud Size:3/8 in
Temperature Rating:221 deg F
Tongue Size:0.59 in W x 0.04 in THK
Tongue Type:Ring
Voltage Rating:600 V
