PV8-56RX-QY PAN

Name: PV8-56RX-QY PAN
Brand: Panduit
SKU: PV8-56RX-QY PAN
Price: 3.91 USD
Availability: OutOfStock

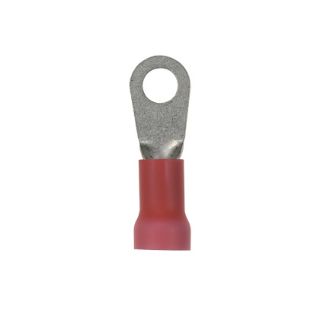

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

PV8-56RX-QY

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$3.91 / EA

Description

Brand Name

Panduit®

Type

Loose Piece

Description

Panduit® Pan-Term® Ring Terminal, Loose Piece, Series: PV-RX, Stranded Conductor, 8 AWG Conductor, 5/16 in Stud, 1.62 in Length, Brazed Seam/Expanded Entry/Insulation Support Barrel, Ring Tongue, 0.59 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.51 in Clearance, 0.36 in Dia Vinyl Insulation, 0.38 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

Application

High Vibration Applications

Standards

Features

Expanded wire entry designed to accommodate wire with a larger insulation thickness
Ring tongue design assures a secure connection in high vibration applications
Insulation support helps to prevent wire damage in bending applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Type:	Brazed Seam/Expanded Entry/Insulation Support
Color:	Red
Conductor Size:	8 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	1.62 in L x 0.59 in W
Finish:	Tin Plated
Length:	1.62 in
Material:	Copper
Series:	PV-RX
Specifications:	0.37 in L Wire Strip, Expanded Insulation
Stud Size:	5/16 in
Temperature Rating:	221 deg F
Tongue Size:	0.59 in W x 0.04 in THK
Tongue Type:	Ring
Voltage Rating:	600 VAC
