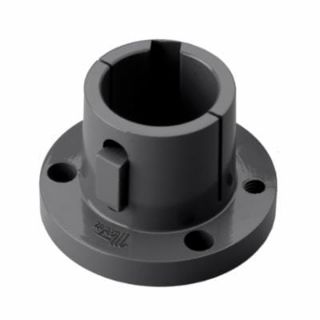

Actual Product May Vary From Image

Q1 1 11/16 MSG

Name: Q1 1 11/16 MSG
Brand: Martin Sprocket & Gear
SKU: Q1 1 11/16 MSG
Price: 59.10 USD
Availability: OutOfStock

Martin Q1 1 11/16 Standard MST Bushing, 1-11/16 in Dia Bore, 2.7657 in Small End/2.875 in Large End Dia Barrel, 4-1/8 in Dia Flange, 2-1/2 in OAL, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: Q1 1 11/16

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$59.10

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.

Martin MST Bushing, Standard, 1-11/16 in Bore Dia, 2.7657 in Small End/2.875 in Large End Barrel Dia, 4-1/2 in Hub Dia, 3-3/8 in Bolt Circle, 4-1/8 in Flange Dia, 0.53 in Flange Thickness, 3 Bolt Holes, 3/8-16 x 1-1/4 in Screw, For Use With: MST® Sprockets and HQ1/HCQ1 Weld-On Hubs, 2-1/2 in Overall Length, 3/8 x 3/16 in Keyway, Steel

Standards

ANSI B15.1

Features

Size 1/Q1 bushing

Specifications

Barrel Diameter:	2.7657 in Small End/2.875 in Large End
Bolt Circle Diameter:	3-3/8 in
Bore Diameter:	1-11/16 in
Country of Origin:	US
Flange Diameter:	4-1/8 in
Flange Thickness:	0.53 in
Hub Diameter:	4-1/2 in
Keyway Size:	3/8 x 3/16 in
Material:	Steel
Number of Bolt Holes:	3
Overall Length:	2-1/2 in
Screw Size:	3/8-16 x 1-1/4 in
Suitable For Use With:	MST® Sprockets and HQ1/HCQ1 Weld-On Hubs
