Actual Product May Vary From Image

Q1 1 3/4 BRN

Name: Q1 1 3/4 BRN
Brand: Regal Rexnord
SKU: Q1 1 3/4 BRN
Price: 57.43 USD
Availability: OutOfStock

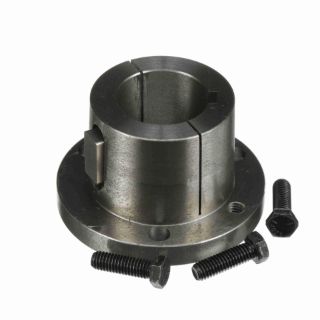

Browning® 1078997 Split Taper Bushing, 1-3/4 in Dia Bore, 2.7657 in Small End/2.875 in Large End Dia Barrel, 4-1/8 in Dia Flange, 2-1/2 in OAL, Sintered Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 1078997

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$57.43

Qty:

Product Details

Brand Name

Browning®

Alternate Supplier #

Motion Industries - 00226479
Applied Industrial Technologies - 100789918

Description

External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.

Browning® Split Taper Bushing, 1-3/4 in Bore Dia, 2.7657 in Small End/2.875 in Large End Barrel Dia, 3-3/8 in Bolt Circle, 4-1/8 in Flange Dia, 17/32 in Flange Thickness, 3 Bolt Holes, 3/8 x 1-1/4 in Screw, For Use With: Browning® Multiple Groove Sheave, 2-1/2 in Overall Length, 3/8 x 3/16 in Keyway, Sintered Steel

Application

Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Packaging Machinery and Unit Handling Industries

Features

Size 1/Q1 bushing
Solid flange and double split barrel, assures better concentricity to the shaft
Key to key drive with keys on both the shaft and product to provide the strongest possible drive
3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
Highest torque carrying capacity in the Browning® bushing product line
Double split barrel assures true concentricity grips the shaft with positive clamp fit

Specifications

Barrel Diameter:	2.7657 in Small End/2.875 in Large End
Bolt Circle Diameter:	3-3/8 in
Bore Diameter:	1-3/4 in
Country of Origin:	MX
Flange Diameter:	4-1/8 in
Flange Thickness:	17/32 in
Keyway Size:	3/8 x 3/16 in
Material:	Sintered Steel
Number of Bolt Holes:	3
Overall Length:	2-1/2 in
Screw Size:	3/8 x 1-1/4 in
Suitable For Use With:	Browning® Multiple Groove Sheave

Customers who bought this item also bought

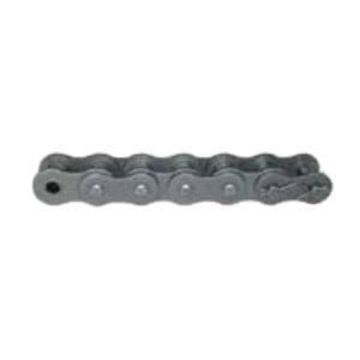

80 1R AD
