Q1 50MM MSG

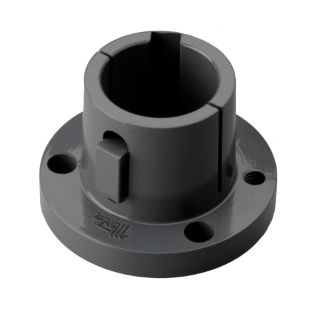

Picture of Q1 50MM MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
Q1 50MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$67.81 / EA

Description

Brand Name

Martin

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.
Martin MST Bushing, 50 mm Bore Dia, 2.7657 in Small End/2.875 in Large End Barrel Dia, 4-1/2 in Hub Dia, 3-3/8 in Bolt Circle, 4-1/8 in Flange Dia, 17/32 in Flange Thickness, 3 Bolt Holes, 3/8-16 x 1-1/4 in Screw, For Use With: MST® Sprockets and HQ1/HCQ1 Weld-On Hubs, 2-1/2 in Overall Length, 14 x 3.8 in Keyway, Ductile Iron

Features

  • Size 1/Q1 bushing
  • Tolerances meet or exceed industry guidelines and standards
  • Recommended for use with split taper bushed parts
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ split-taper bushings

Includes

Cap Screws, Instruction Sheet and Key

Specifications

Barrel Diameter:2.7657 in Small End/2.875 in Large End
Bolt Circle Diameter:3-3/8 in
Bore Diameter:50 mm
Country of Origin:US
Flange Diameter:4-1/8 in
Flange Thickness:17/32 in
Hub Diameter:4-1/2 in
Keyway Size:14 x 3.8 in
Material:Ductile Iron
Number of Bolt Holes:3
Overall Length:2-1/2 in
Screw Size:3/8-16 x 1-1/4 in
Suitable For Use With:MST® Sprockets and HQ1/HCQ1 Weld-On Hubs
