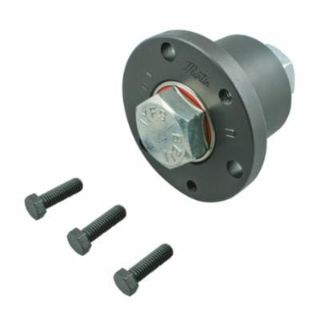

Q1-BB 1 MSG

Name: Q1-BB 1 MSG
Brand: Martin Sprocket & Gear
SKU: Q1-BB 1 MSG
Price: 375.11 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

Q1-BB 1

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 4 days

Estimated dates are contingent upon manufacturer stock.

$375.11 / EA

Description

Brand Name

Martin

Description

Idler bushings are designed to accommodate stock V-belt drives, sprockets, timing belt pulleys , or other products that use MST® type bushings. They are equipped with two electric motor grade, permanently lubricated ball bearings, mounted on a precision shoulder bolt.

Martin MST Idler Bushing, 1 in Bore Dia, 2-7/8 in Barrel Dia, 3-3/8 in Bolt Circle, 4-1/4 in Flange Dia, 17/32 in Flange Thickness, 5 Bolt Holes, 3/8 x 1 1/4 in Screw, Ball Bearing, 2555 lb at 100 rpm Radial Load, 4-39/64 in Overall Length, -40 to 240 deg F, Ductile Iron

Features

They are equipped with two electric motor grade, permanently lubricated ball bearings, mounted on a precision shoulder bolt
Shoulder bolt and two hex jam nuts are zinc plated
Installation is made by slipping the threaded shaft through a hole bored in support structure and tightening the locking nut
Sheaves, sprockets or other products can be removed without dismounting the idler bushing
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturersâ€™ split-taper bushings

Specifications

Barrel Diameter:	2-7/8 in
Bearing Type:	Ball
Bolt Circle Diameter:	3-3/8 in
Bore Diameter:	1 in
Country of Origin:	US
Flange Diameter:	4-1/4 in
Flange Thickness:	17/32 in
Material:	Ductile Iron
Number of Bolt Holes:	5
Overall Length:	4-39/64 in
Radial Load Capacity:	2555 lb at 100 rpm
Screw Size:	3/8 x 1 1/4 in
Temperature Rating:	-40 to 240 deg F
