QAACW20A400ST QM

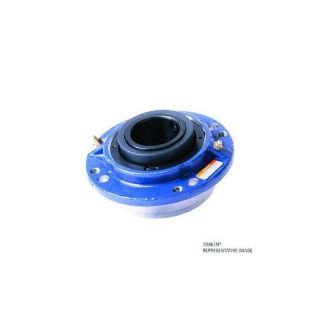

Picture of QAACW20A400ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAACW20A400ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,343.34 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAACW20A400ST, Flange Cartridge, Series: QAACW, 4 in Bore, 6.63 in Bolt Center-to-Center Length, 9.38 in Diameter Bolt Circle, Piloted Flange Mounting, 10.88| in Overall Length/Diameter, 5.94 in Overall Depth, Double Concentric Locking Device, Steel Bearing, Teflon Seal, 435000 N Dynamic/502000 N Static Load, 1600 rpm Grease/2000 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.63 in
Bolt Circle Diameter:9.38 in
Bore Diameter:4 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:435000 N Dynamic/502000 N Static
Locking Device:Double Concentric
Maximum Speed:1600 rpm Grease/2000 rpm Oil
Overall Depth:5.94 in
Overall Length/Diameter:10.88 in
Seal Material:Teflon
Series:QAACW
Temperature Rating:-100 to 500 deg F
