QAAF15A215SB QM

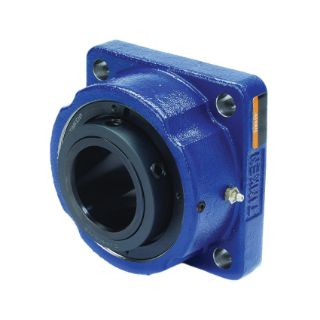

Picture of QAAF15A215SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAF15A215SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,642.52 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Non-Expansion B Seal Solid Block

Description

Available in double-collar (QAA) versions, the CL bearing series features a concentric locking collar with two set screws at 60 deg to provide maximum positive locking power with minimal run out.
Timken®, QAAF15A215SB, Spherical Roller Bearing Housed Unit, Series: CL Series, 2-15/16 in Bore, 6 in Bolt Center-to-Center Length, 8.48 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.44 in Overall Length/Diameter, 4.74 in Overall Depth, 7.44 in Overall Height, Double Concentric Collar Locking Device, Cast Steel Seal, 49900 lb Dynamic/54100 lb Static Load, 1300 rpm Grease/1300 rpm Oil Maximum

Application

For use with 2-15/16 in shaft diameter

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6 in
Bolt Circle Diameter:8.48 in
Bore Diameter:2-15/16 in
Flange Mounting Type:4-Bolt Square
Load Capacity:49900 lb Dynamic/54100 lb Static
Locking Device:Double Concentric Collar
Maximum Speed:1300 rpm Grease/1300 rpm Oil
Overall Depth:4.74 in
Overall Height:7.44 in
Overall Length/Diameter:7.44 in
Seal Material:Cast Steel
Series:CL Series

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 15/16 in
