QAAMC22A407SM QM

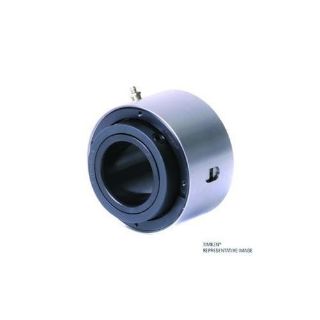

Picture of QAAMC22A407SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAMC22A407SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6,501.52 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Double Concentric

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAMC22A407SM, Cartridge Block, Double Concentric, Series: QAAMC, 4-7/16 in Bore, 8.75 in OD, 6.25 in Width, 555000 N Dynamic/653000 N Static Load, Nitrile Rubber Seal, 900 rpm Grease/900 rpm Oil Maximum, -50 to 200 deg F, Machined Steel

Application

Offers superior sealing in moist and dirty applications

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bore Diameter:4-7/16 in
Finish:Machined Steel
Load Capacity:555000 N Dynamic/653000 N Static
Maximum Speed:900 rpm Grease/900 rpm Oil
Outside Diameter:8.75 in
Seal Material:Nitrile Rubber
Series:QAAMC
Temperature Rating:-50 to 200 deg F
Width:6.25 in

Products Specifications

Brand Name
Timken
Shaft Diameter
4 7/16 in
