QAAPF13A208SM QM

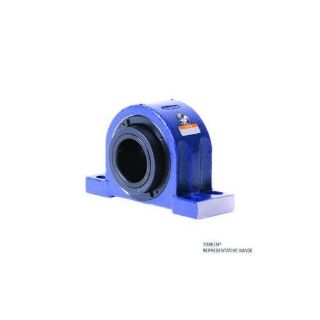

Picture of QAAPF13A208SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPF13A208SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,212.59 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAPF13A208SM, Pillow Block, Series: QAAPF, 2.5 in Bore, 6.88 to 7.63 in Bolt Center-to-Center Length, 2.75 in Base to Bore Centerline, 9.25 in Overall Length, 3.65 in Overall Width, 5.8 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 3 in Base Width, Double Concentric Collar Locking Device, M Seal, Fixed Expansion, 206000 N Dynamic/216000 N Static Load, -50 to 200 deg F, 1800 rpm Grease/1800 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:2.75 in
Base Width:3 in
Bolt Center-to-Center Length:6.88 to 7.63 in
Bore Diameter:2.5 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:206000 N Dynamic/216000 N Static
Locking Device:Double Concentric Collar
Material:Steel
Maximum Speed:1800 rpm Grease/1800 rpm Oil
Mounting Type:4-Bolt
Overall Height:5.8 in
Overall Length:9.25 in
Overall Width:3.65 in
Seal Type:M Seal
Series:QAAPF
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
2 1/2 in
Type
4 Bolt Pillow Block
