QAAPF26A130ST QM

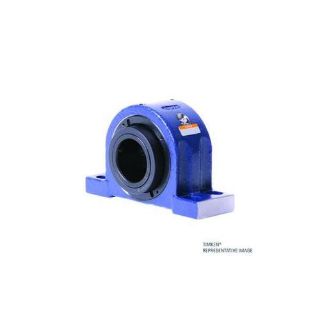

Picture of QAAPF26A130ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPF26A130ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8,007.93 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QAAPF26A130ST, Pillow Block, Series: QAAPF, 5.1181 in Bore, 13 to 15.88 in Bolt Center-to-Center Length, 5.5 in Base to Bore Centerline, 17.5 in Overall Length, 6.24 in Overall Width, 11.01 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 5.04 in Base Width, Double Concentric Collar Locking Device, T Seal, Fixed Expansion, 757000 N Dynamic/945000 N Static Load, -100 to 500 deg F, 1000 rpm Grease/1500 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Double Collar set-screw locking - CL Series - Two set screws positioned at 60 deg provide aggressive holding power
  • When configured with a double-collared insert, the bearing provides double the holding power compared to our standard single-collared insert
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:5.5 in
Base Width:5.04 in
Bolt Center-to-Center Length:13 to 15.88 in
Bore Diameter:5.1181 in
Bore Type:Cylindrical
Expansion Type:Fixed
Finish:Painted
Load Capacity:757000 N Dynamic/945000 N Static
Locking Device:Double Concentric Collar
Material:Steel
Maximum Speed:1000 rpm Grease/1500 rpm Oil
Mounting Type:4-Bolt
Overall Height:11.01 in
Overall Length:17.5 in
Overall Width:6.24 in
Seal Type:T Seal
Series:QAAPF
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Metric
Shaft Diameter
130 mm
Type
4 Bolt Pillow Block
