QAAPL10A200SO QM

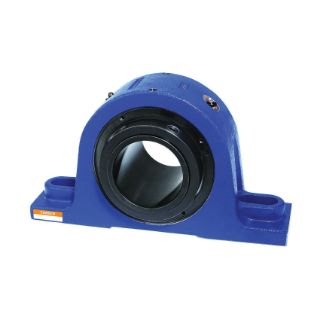

Picture of QAAPL10A200SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QAAPL10A200SO
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$951.20 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Extra Heavy Duty S2000 Style Solid Block

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QAAPL10A200SO, Pillow Block Spherical Roller Bearing Unit, 2 in Bore, 5.93 to 6.36 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8.38 in Overall Length, 3-3/4 in Overall Width, 4.81 in Overall Height, Two-Bolt Base Mounting, Cylindrical Bore, 2.44 in Base Width, Double Concentric Collar Locking Device, Triple Lip O Seal, Non-Expansion (Fixed), 26300 lb Dynamic/26600 lb Static Load, 1800 rpm Maximum, Cast Steel, Powder Coated

Application

Metal Mills, Aggregate, Cement, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Sawmills and Other Forest Process Industries

Features

  • Concentric locking collar with two set screws at 60 degrees to provide maximum positive locking power with minimal run out
  • Double collared insert provides double the holding power compared to our standard single collared insert
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
  • Bearing steel
  • Open end type
  • Double row bearing
  • 22210 bearing insert bore series
  • Simple installation
  • Increased holding power

Specifications

Base to Bore Centerline:2-1/4 in
Base Width:2.44 in
Bolt Center-to-Center Length:5.93 to 6.36 in
Bore Diameter:2 in
Bore Type:Cylindrical
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:26300 lb Dynamic/26600 lb Static
Locking Device:Double Concentric Collar
Material:Cast Steel
Maximum Speed:1800 rpm
Mounting Type:Two-Bolt Base
Overall Height:4.81 in
Overall Length:8.38 in
Overall Width:3-3/4 in
Seal Type:Triple Lip O

Products Specifications

Brand Name
Timken
Locking Type
Set Screw Lock Double-Collar
Measuring Units
Inch
Shaft Diameter
2 in
Type
2 Bolt Pillow Block
